Diagnostic and pathological studies of epizootic ulcerative syndrome (EUS) outbreak in cultured leucistic Channa argus in Sichuan Province of China
-
摘要: 四川地区养殖的白乌鳢 (Channa argus) 在2021年秋冬阴雨季节频繁发生溃疡性死亡事件。为确定白乌鳢溃疡性疾病的原因,通过临床观察、分离培养、组织学和分子生物学等技术开展了研究。大体病理研究发现,患病鱼主要表现为皮肤脱落并暴露皮下肌肉层,肌肉出现深层溃疡的情况;在光镜下,发现肌肉触片中有直径为10~20 μm的无隔膜分枝状菌丝,通过霉菌分离纯化和ITS基因序列分析,鉴定该病原菌为侵入性丝囊霉菌 (Aphanomyces invadans)。组织病理学显示,在皮肤真皮层和肌肉中的溃疡边缘包围着成熟的肉芽肿,而这些肉芽肿可侵袭至肉眼所观察到的正常肌肉处,对病鱼造成进一步的影响。研究结果表明,此次白乌鳢暴发性死亡的原因是侵入性丝囊霉菌引起的流行性溃疡综合征 (Epizootic Ulcerative Syndrome, EUS),这是关于白乌鳢流行性溃疡综合征的首次报告。研究结果为侵入性丝囊霉菌的鉴定和临床诊断提供了理论参考,也是侵入性丝囊霉菌宿主进一步扩大的证明。Abstract: In order to determine the causes of the frequent occurrence of diseases in leucistic northern snakehead (Channa argus) in Sichuan Province of China during the cloudy, rainy autumn and winter, we carried out the reseach by techniques such as clinical observation, isolation and culture, as well as histology and molecular biology, etc.. Generally, the pathological study shows that the main manifestations of the diseased fish were skin peeling, exposing the subcutaneous muscle layer, and the deep ulcer of the muscle. Moreover, non-septate branching fungal hyphae with a diameter of 10–20 µm were observed in squash preparations under light microscopy. The pathogen was identified as invasive Aphanomyces invadans by isolation and purification and ITS sequence analysis. Histopathology reveals that the ulcer edge in the skin dermis and muscle was surrounded by mature granuloma. These granulomas could invade the normal muscles observed by naked eye and caused a further impact on the diseased fish. The findings indicate that the disease was Epizootic Ulcerative Syndrome (EUS), which is the first report of EUS in leucistic C. argus, providing the basic data for the identification and clinical diagnosis of A. invadans. The findings also suggest that a risk of host expansion of this fungus may exist.
-
图 3 病鱼肌肉的组织病理学分析
注:a. 真菌入侵后形成的肉芽肿变化,箭头表示被肉芽肿占据的残余肌纤维;b. 肉芽组织入侵肌肉的概况;b'. 肉芽组织入侵皮肤和肌肉示意图,黄色区域表示肉芽组织入侵区域,绿色区域表示正常组织。
Figure 3. Histopathological analysis of muscles of diseased fish
Note: a. Change in granulomas formed after fungal invasion, and the arrows indicate remnant muscle fibres occupied by granulomas; b. Overview of the invasion of muscle by granulation tissue; b'. Schematic illustration of granulation tissue invading skin and muscle. The yellow area indicates the area occupied by granulation tissue and the green area indicates the unoccupied area.

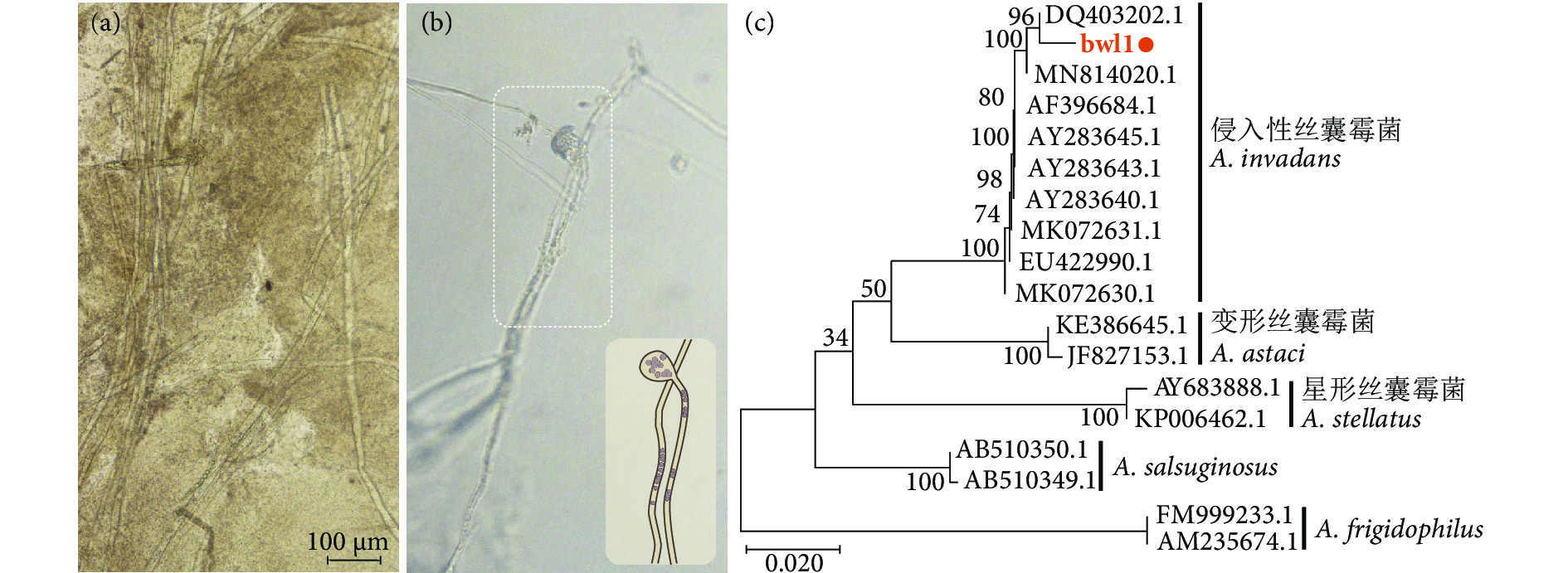

图 5 侵入性丝囊霉菌的形态特征和分子鉴定
注:a. 临床样本的肌肉压片;b. 纯化的真菌菌株;c. 基于菌株bwl1ITS基因序列构建的系统进化树。
Figure 5. Morphological characteristics and molecular identification of A. invadans
Note: a. Muscle compression of clinical samples; b. Purified fungal strains; c. Phylogenetic tree based on ITS gene sequence of the strain bwl1.
-
[1] 常藕琴, 石存斌, 王亚军, 等. 鳢流行性溃疡综合征病原分离鉴定与病理形态学观察[J]. 中国水产科学, 2019, 26(6): 1213-1220. [2] KAMILYA D, BARUAH A. Epizootic ulcerative syndrome (EUS) in fish: history and current status of understanding[J]. Rev Fish Biol Fish, 2014, 24(1): 369-380. doi: 10.1007/s11160-013-9335-5 [3] 吉莉莉, 汪开毓, 肖丹, 等. 南方鲇溃疡综合症病原菌的分离与鉴定[J]. 淡水渔业, 2008, 38(3): 68-72. doi: 10.3969/j.issn.1000-6907.2008.03.013 [4] WALSH H L, BLAZER V S, MAZIK P M. Identification of Aphanomyces invadans, the cause of epizootic ulcerative syndrome, in smallmouth bass (Micropterus dolomieu) from the Cheat River, West Virginia, USA[J]. J Fish Dis, 2021, 44(10): 1639-1641. doi: 10.1111/jfd.13468 [5] OIE. Manual of Diagnostic Tests for aquatic animals[M]. Paris: World Organization for Animal Health, 2013: 234-246. [6] 中华人民共和国农业农村部. 中华人民共和国农业农村部公告第573号: 一、二、三类动物疫病病种名录[EB/OL]. (2022-06-23)[2022-11-20].http://www.moa.gov.cn/govpublic/xmsyj/202206/t20220629_6403635.htm. [7] EGUSA S, MASUDA N. A new fungal of Plecoglossus altivelis[J]. Fish Pathol, 1971, 6(1): 41-46. doi: 10.3147/jsfp.6.41 [8] IBERAHIM N A, TRUSCH F, van WEST P. Aphanomyces in-vadans, the causal agent of Epizootic Ulcerative Syndrome, is a global threat to wild and farmed fish[J]. Fungal Biol Rev, 2018, 32(3): 118-130. doi: 10.1016/j.fbr.2018.05.002 [9] 中华人民共和国农业农村部公告第578号: 2022年审定通过的水产新品种[EB/OL]. [2022-07-14] (2022-11-20). http://www.moa.gov.cn/govpublic/YYJ/202207/t20220714_6404711.htm. [10] 王伯沄, 李玉松, 黄高昇, 等. 病理学技术[M]. 北京: 人民卫生出版社, 2000: 128-134, 158. [11] HUCHZERMEYER C, HUCHZERMEYER K, CHRISTISON K, et al. First record of epizootic ulcerative syndrome from the Upper Congo catchment: an outbreak in the Bangweulu swamps, Zambia[J]. J Fish Dis, 2018, 41(1): 87-94. doi: 10.1111/jfd.12680 [12] PHADEE P, KURATA O, HATAI K. A PCR method for the detection of Aphanomyces piscicida[J]. Fish Pathol, 2004, 39(1): 25-31. doi: 10.3147/jsfp.39.25 [13] VANDERSEA M W, LITAKER R W, YONNISH B, et al. Molecular assays for detecting Aphanomyces invadans in ulcerative mycotic fish lesions[J]. Appl Environ Microbiol, 2006, 72(2): 1551-1557. doi: 10.1128/AEM.72.2.1551-1557.2006 [14] KUMAR S, STECHER G, LI M, et al. MEGA X: molecular evolutionary genetics analysis across computing platforms[J]. Mol Biol Evol, 2018, 35(6): 1547-1549. doi: 10.1093/molbev/msy096 [15] SAYLOR R K, MILLER D L, VANDERSEA M W, et al. Epizootic ulcerative syndrome caused by Aphanomyces invadans in captive bullseye snakehead Channa marulius collected from south Florida, USA[J]. Dis Aquat Org, 2010, 88(2): 169-175. [16] AFZALI S F, DAUD H H M, SHARIFPOUR I, et al. Experimental infection of Aphanomyces invadans and susceptibility in seven species of tropical fish[J]. Vet World, 2015, 8(9): 1038. doi: 10.14202/vetworld.2015.1038-1044 [17] SUMITHRA T, KUMAR T A, SWAMINATHAN T, et al. Epizootics of epizootic ulcerative syndrome among estuarine fishes of Kerala, India, under post-flood conditions[J]. Dis Aquat Org, 2020, 139: 1-13. doi: 10.3354/dao03465 [18] CALLINAN R, FRASER G, VIRGONA J. Pathology of red spot disease in sea mullet, Mugil cephalus L., from eastern Australia[J]. J Fish Dis, 1989, 12(5): 467-479. doi: 10.1111/j.1365-2761.1989.tb00558.x [19] COSTA H, WIJEYARATNE M. Epidemiology of the epizootic ulcerative syndrome occurring for the first time among fish in Sri Lanka[J]. J Appl Ichthyol, 1989, 5(1): 48-52. doi: 10.1111/j.1439-0426.1989.tb00570.x [20] VIRGONA J. Environmental factors influencing the prevalence of a cutaneous ulcerative disease (red spot) in the sea mullet, Mugil cephalus L., in the Clarence River, New South Wales, Australia[J]. J Fish Dis, 1992, 15(5): 363-378. doi: 10.1111/j.1365-2761.1992.tb01236.x [21] DAS B C, HARIDAS D V, JACOB N, et al. Outbreaks of epizootic ulcerative syndrome in Kerala, India following episodes of flooding[J]. Dis Aquat Org, 2021, 143: 189-193. doi: 10.3354/dao03567 [22] KUMARESAN V, PASUPULETI M, ARASU M V, et al. A comparative transcriptome approach for identification of molecular changes in Aphanomyces invadans infected Channa striatus[J]. Mol Biol Rep, 2018, 45(6): 2511-2523. doi: 10.1007/s11033-018-4418-y [23] KUMARESAN V, PASUPULETI M, AROCKIARAJ J. RNA seq analysis of a novel fish pathogenic fungus, Fusarium oxysporum: in quest of unveiling the virulence factors associated with fish infection[J]. Gene Rep, 2018, 12: 132-140. doi: 10.1016/j.genrep.2018.06.015 [24] RAHMAN M, COLQUE-NAVARRO P, KÜHN I, et al. Identification and characterization of pathogenic Aeromonas veronii biovar sobria associated with epizootic ulcerative syndrome in fish in Bangladesh[J]. Appl Environ Microbiol, 2002, 68(2): 650-655. doi: 10.1128/AEM.68.2.650-655.2002 [25] CALLINAN R, KEEP J. Bacteriology and parasitology of red spot disease in sea mullet, Mugil cephalus L., from eastern Australia[J]. J Fish Dis, 1989, 12(4): 349-356. doi: 10.1111/j.1365-2761.1989.tb00323.x [26] SAHA D, PAL J. In vitro antibiotic susceptibility of bacteria isolated from EUS-affected fishes in India[J]. Lett Appl Microbiol, 2002, 34(5): 311-316. doi: 10.1046/j.1472-765X.2002.01124.x [27] LI Z F, WANG G J, ZHANG K, et al. Epizootic ulcerative syndrome causes cutaneous dysbacteriosis in hybrid snakehead (Channa maculata♀×Channa argus♂)[J]. PeerJ, 2019, 7: e6674. doi: 10.7717/peerj.6674 [28] CHUBB J C. Marine fish parasitology: an outline[J]. Parasitol Today, 1991, 7(12): 357-357. [29] SHARIFF M, CRUZ-LACIERDA E R. The hematological changes in snakehead (Ophicephalus striatus) affected by epizootic ulcerative syndrome[C]//CHOU L M, MUNRO A D, LAM T J, et al. Proceedings of the Third Asian Fisheries Forum, 26–30 October 1992, Singapore. Manila, Philippines: Asian Fisheries Society, 1994: 361-364 . [30] WADA S, YUASA K, RHA S A, et al. Histopathology of Aphanomyces infection in dwarf gourami (Colisa lalia)[J]. Fish Pathol, 1994, 29(4): 229-237. doi: 10.3147/jsfp.29.229 [31] KUMAR I P, SARKAR P, RAJU V S, et al. Pathogenicity and pathobiology of epizootic ulcerative syndrome (EUS) causing fungus Aphanomyces invadans and its immunological response in fish[J]. Rev Fish Sci Aquac, 2020, 28(3): 358-375. doi: 10.1080/23308249.2020.1753167 [32] MARI L S S, JAGRUTHI C, ANBAZAHAN S M, et al. Protective effect of chitin and chitosan enriched diets on immunity and disease resistance in Cirrhina mrigala against Aphanomyces invadans[J]. Fish Shellfish Immunol, 2014, 39(2): 378-385. doi: 10.1016/j.fsi.2014.05.027 -
