Molecular characterization and expression of MAP2K1 gene in Hyriopsis cumingii
-
摘要: 为研究MAP2K1 (MEK1) 基因在三角帆蚌 (Hyriopsis cumingii) 性别决定中的作用，采用cDNA末端快速克隆技术 (Rapid-amplification of cDNA ends, RACE) 克隆了MAP2K1基因序列，利用实时荧光定量分析比较MAP2K1基因在三角帆蚌6个组织 (性腺、闭壳肌、肝胰腺、鳃、外套膜、斧足)、早期发育阶段 (1—8月龄) 性腺和1—3龄雌雄性腺中的表达水平，利用原位杂交确定MAP2K1基因在2龄三角帆蚌性腺中的定位。结果显示，MAP2K1基因开放阅读框 (ORF) 长度为1 194 bp，编码397个氨基酸。MAP2K1基因在卵巢中高表达；早期发育阶段在2月龄表达量最高；1—3龄的表达结果显示，MAP2K1基因在卵巢中的表达量均高于同期精巢中的表达量 (P<0.05)。原位杂交结果显示，MAP2K1基因在雌性三角帆蚌的卵母细胞及卵子上有明显的杂交信号。RNAi结果显示，干扰MAP2K1基因的上游基因C-MOS后，下游基因MAP2K1在雌性中的表达下降了82.31%，在雄性中的表达下降了73.60%。推测MAP2K1基因可能参与三角帆蚌的卵巢发育过程，在三角帆蚌中属于偏雌性基因，其表达受C-MOS基因的影响。Abstract: In order to study the role of the MAP2K1 (MEK1) gene in the sex determination of Hyriopsis cumingii, we applied RACE (Rapid-amplification of cDNA ends) method to clone the MAP2K1 gene sequence. We conducted a real-time fluorescence quantitative analysis to compare MAP2K1 gene in six tissues (Gonads, adductor muscle, hepatopancreas, gills, mantle, foot), gonads at early developmental stage (1−8 month old) and the 1−3 years' level of expression in male and female glands of H. cumingii. We determined the location of MAP2K1 gene in the gonads of 2-year-old H.cumingii by in situ hybridization. The results show that the ORF region of MAP2K1 gene was 1 194 bp in length and encoded 397 amino acids. MAP2K1 gene was highly expressed in the ovary; the expression level was the highest at 2 months of age at early developmental stage; the expression results from 1−3 years of age show that the expression of MAP2K1 gene in the ovary was higher than that in the spermatozoa for the same period (P<0.05). The in situ hybridization results show that the MAP2K1 gene had a significant hybridization signal in the oocytes and eggs of female H. cumingii. RNAi results show that the expression of the downstream gene MAP2K1 gene decreased by 82.31% in females and 73.60% in males after interfering with the upstream gene C-MOS gene of MAP2K1 gene. In conclusion, MAP2K1 gene may be involved in the ovarian development process and is a female-biased gene in H. cumingii, and C-MOS gene affects its expression.
-
Key words:
- Hyriopsis cumingii /
- MAP2K1 gene /
- Molecular characterization /
- Gene expression
-
图 1 三角帆蚌MAP2K1基因核苷酸序列及氨基酸序列
Figure 1. MAP2K1 gene nucleotide sequence and amino acid sequence of H. cumingii
图 2 三角帆蚌MAP2K1基因二级、三级结构预测
Figure 2. Secondary and tertiary structure prediction of MAP2K1 gene in H. cumingii
图 3 三角帆蚌与其他物种MAP2K1基因的蛋白序列比对
Figure 3. Protein sequence comparison of MAP2K1 gene between H. cumingii and others
图 4 不同物种MAP2K1基因的氨基酸序列构建的NJ系统进化树
Figure 4. NJ phylogenetic trees constructed from amino acid sequences of MAP2K1 gene in different species

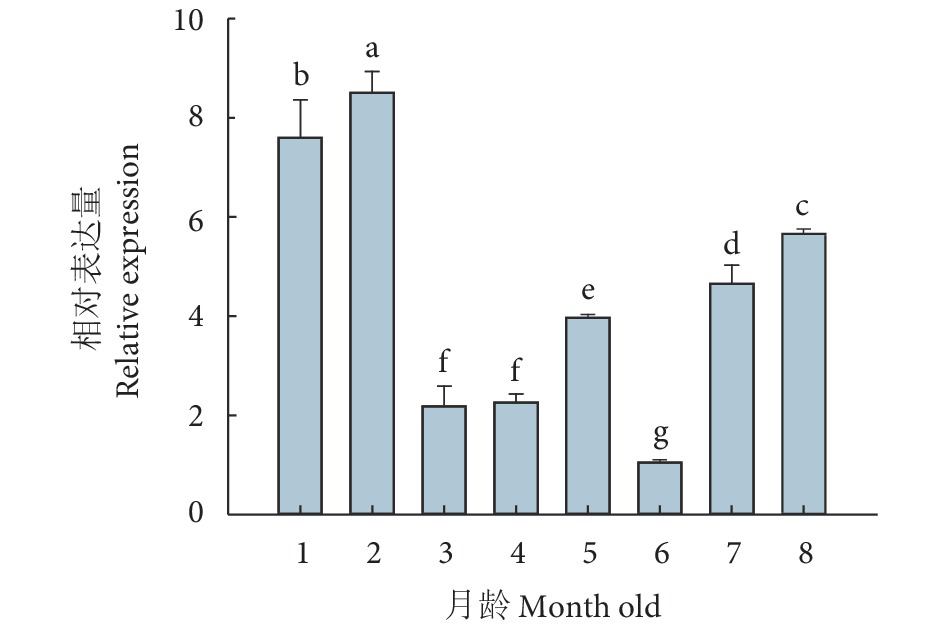

图 6 三角帆蚌MAP2K1基因在早期性腺组织中的表达
注：柱上不同字母表示存在显著性差异 (P<0.05) ；相同字母表示无显著性差异。
Figure 6. Expression of MAP2K1 in various tissues of female and male adults of H. cumingii
Note: Different letters indicate significant difference (P<0.05), while the same letters indicate insignificant difference.

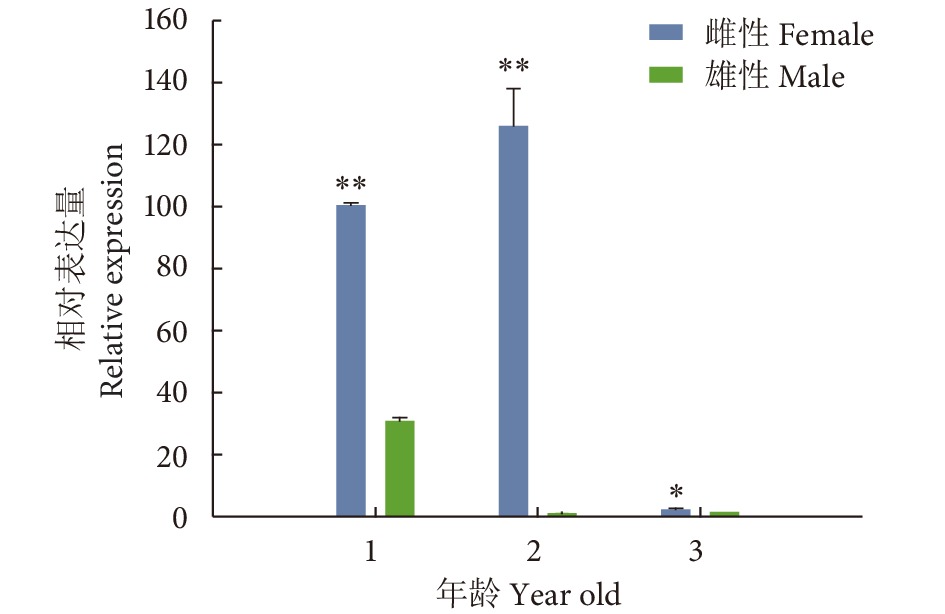

图 7 MAP2K1基因在1—3龄三角帆蚌性腺中的相对表达
Figure 7. Relative expression of MAP2K1 gene in gonads ofH. cumingii of 1−3 years old
图 8 三角帆蚌MAP2K1基因在2龄三角帆蚌性腺原位杂交
注：a. 雌性阴性对照组；b. 雌性实验组；c. 雄性阴性对照组；d. 雄性实验组。
Figure 8. MAP2K1 in situ hybridization in gonads of 2-year-old H. cumingii
Note: a. Female of negative control group; b. Female of experimental group; c. Male of negative control group; d. Male of experimental group.

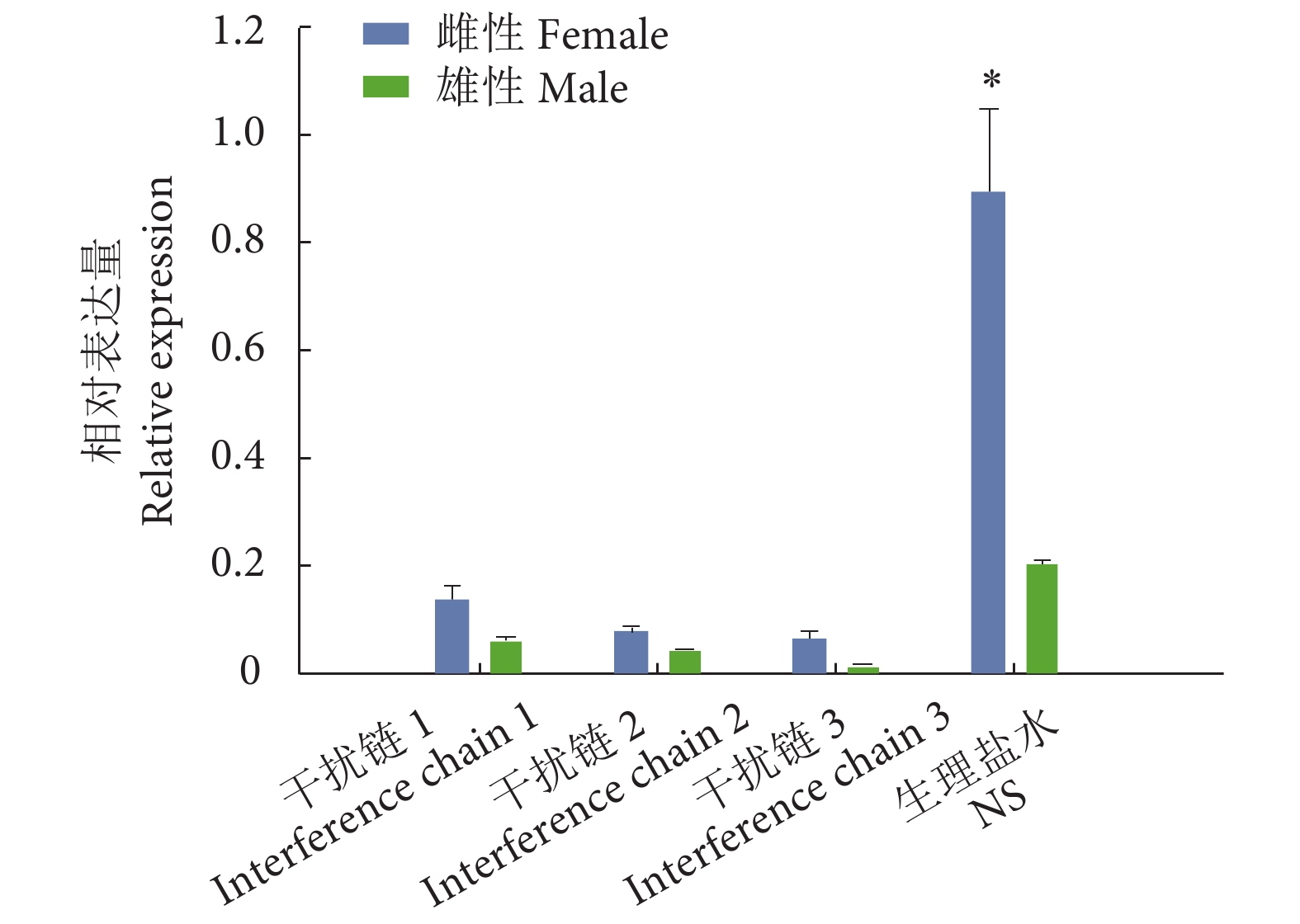

图 9 三角帆蚌C-MOS基因干扰后表达情况
Figure 9. Expression of C-MOS gene of H. cumingii after interference
图 11 三角帆蚌C-MOS基因干扰后MAP2K1基因表达情况
Figure 11. Expression of MAP2K1 gene of H. cumingii after C-MOS gene interference
表 1 本实验所需引物
Table 1. Primers for this study
引物名
Primer's name引物序列 (5'—3')
Primer sequence (5'−3')用途
PurposeK1-O TATTCCTACAGCAGACTCGTGATTG 3'RACE outer K1-I GACCTGGATTTGATAATAGATGTGGG 3'RACE inner K1-YG-F AACAAGCTGAATCTGACGCTG 荧光定量正向引物 K1-YG-R GCTCCTTCAGTTTCTTGGTCAGT 荧光定量反向引物 EFl-αF GGAACTTCCCAGGCAGACTGTGC 内参正向引物 EFl-αR TCAAAACGGGCCGCAGAGAAT 内参反向引物 K1-YW-F AACAAGCTGAATCTGACGCTG 原位杂交正向引物 K1-YW-R TAATACGACTCACTATAGGGGCTCCTTCAGTTTCTTGGTCAGT 原位杂交反向引物 M-GR-1F TTGGGTATGGTTCGCAGTT 干扰链1正向引物 M-GR-1R GCCCTTGTAAGCTCATGTTT 干扰链1正向引物 T7+M-GR-1F TAATACGACTCACTATAGGGTTGGGTATGGTTCGCAGTT T7+干扰链1正向引物 T7+M-GR-1R TAATACGACTCACTATAGGGGCCCTTGTAAGCTCATGTTT T7+干扰链1反向引物 M-GR-2F TATGAACGAACATCGGAGGC 干扰链2正向引物 M-GR-2R CCCATACGCAACAACCC 干扰链2反向引物 T7+M-GR-2F TAATACGACTCACTATAGGGTATGAACGAACATCGGAGGC T7+干扰链2正向引物 T7+M-GR-2R TAATACGACTCACTATAGGGCCCATACGCAACAACCC T7+干扰链2反向引物 M-GR-3F TAACGCCTCACGACGAC 干扰链3正向引物 M-GR-3R CCGGCTCTTGCATTCC 干扰链3反向引物 T7+M-GR-3F TAATACGACTCACTATAGGGTAACGCCTCACGACGAC T7+干扰链3正向引物 T7+M-GR-3R TAATACGACTCACTATAGGGCCGGCTCTTGCATTCC T7+干扰链3反向引物
下载: 导出CSV
-
[1] 段胜华, 刘振明, 胡宏辉, 等. 插片后珍珠蚌生长性状及其无核珍珠成珠率和大小[J]. 水产学报, 2020, 44(10): 1645-1653. [2] WANG G L, DONG S S, GUO P F, et al. Identification of Foxl2 in freshwater mussel Hyriopsis cumingii and its involvement in sex differentiation[J]. Gene, 2020, 754(5): 144853. [3] 赵永超. 三角帆蚌雌雄间生长和产珠性能差异研究[D]. 上海: 上海海洋大学, 2013: 1-47. [4] 葛静远. 三角帆蚌Dmrta2和Lhx9基因的分离鉴定和功能初探[D]. 上海: 上海海洋大学, 2020: 1-83. [5] 路洪涛. ERK通路关键基因在鹅等级前卵泡中的表达规律研究[D]. 吉林: 吉林农业大学, 2019: 1-46. [6] 陈宾. MAPK/ERK信号通路在大鼠视神经损伤后小胶质细胞活化中的作用及机制研究[J]. 卒中与神经疾病, 2018, 25(4): 427-430. doi: 10.3969/j.issn.1007-0478.2018.04.017 [7] DIMASI A, LEBOFFE L, DAMARINIS E, et al. Retinoic acid receptors: from molecular mechanisms to cancer therapy[J]. Mol Aspects Med, 2015, 41: 1-115. doi: 10.1016/j.mam.2014.12.003 [8] 高璐, 郑洪新, 尚德阳, 等. 补肾复方对去卵巢大鼠MEK1、ERK2基因表达的调控作用[J]. 中国骨质疏松杂志, 2014, 20(5): 471-475,484. doi: 10.3969/j.issn.1006-7108.2014.05.003 [9] AUDE D, OLIVIER H, CATHERINE J. Mos in the oocyte: how to use MAPK independently of growth factors and transcription to control meiotic divisions[J]. J Signal Transduc, 2011, 15: 3504-3512. [10] FILATOV M A, NIKISHIN D A, KHRAMOVA Y V, et al. The in vitro analysis of quality of ovarian follicle culture systems using time-lapse microscopy and quantitative real-time PCR[J]. J Reprod Infertil, 2020, 21,(2): 94-106. [11] BOWLES J, FENG C W, MILES K, et al. ALDH1A1 provides a source of meiosis-inducing retinoic acid in mouse fetal ovaries[J]. Nat Commun, 2016, 7: 10845. doi: 10.1038/ncomms10845 [12] NICOLE M C, HAMEL L P, MORENCY M J, et al. MAP-ping genomic organization and organ-specific expression profiles of poplar MAP kinases and MAP kinase kinases[J]. BMC Genomics, 2006, 7: 223. doi: 10.1186/1471-2164-7-223 [13] 朱丹丹, 江世贵, 黄建华, 等. 斑节对虾性腺组织、细胞的原代培养条件优化[J]. 水产科学, 2019, 38(2): 163-172. [14] DECROOCQ F V, DECROOCQ S, van W J, et al. A homologue of the MAP/ERK family of protein kinase genes is expressed in vegetative and in female reproductive organs of Petunia hybrida[J]. Plant Mol Biol, 1995, 27(2): 339-350. doi: 10.1007/BF00020188 [15] AOIDI R, MALATIS A, CHARRON J. Functional redundancy of the kinases MEK1 and MEK2: rescue of the Mek1 mutant phenotype by Mek2 knock-in reveals a protein threshold effect[J]. Sci Signal, 2016, 9(412): ra9. [16] CHEN F M, FU Q, PU L P, et al. Integrated analysis of quantitative proteome and transcriptional profiles reveals the dynamic function of maternally expressed proteins after parthenogenetic activation of buffalo oocyte[J]. Mol Cell Proteomics, 2018, 17(10): 1875-1891. doi: 10.1074/mcp.RA118.000556 [17] PENG Z L, CHEN B B, ZHENG Q S, et al. Ameliorative effects of peptides from the oyster (Crassostrea hongkongensis) protein hydrolysates against UVB-induced skin photodamage in mice[J]. Mar Drugs, 2020, 18(6): 288. doi: 10.3390/md18060288 [18] HANANA H, TALARMIN H, PENNEC J P, et al. Effect of okadaic acid on cultured clam heart cells: involvement of MAPkinase pathways[J]. Biol Open, 2012, 1(12): 1192-1199. doi: 10.1242/bio.20122170 [19] 陈丽, 耿金曼, 刘禹姗, 等. 越橘类黄酮化合物转运相关基因MATE的克隆与表达分析[J]. 吉林农业大学学报, 2017, 39(2): 148-156. [20] BAI Z Y, ZHENG H F, LIN J Y, et al. Comparative analysis of the transcriptome in tissues secreting purple and white nacre in the pearl mussel Hyriopsis cumingii[J]. PLOS ONE, 2013, 8(1): e53617. doi: 10.1371/journal.pone.0053617 [21] 于学颖, 郭芹芹, 郝海生, 等. 谷胱甘肽促进牛体外受精胚胎发育的转录组初探[J]. 畜牧兽医学报, 2016, 47(7): 1363-1372. doi: 10.11843/j.issn.0366-6964.2016.07.008 [22] 曹辉庆, 蒋胜理, 黄诚梅, 等. 甘蔗ATP结合蛋白基因克隆及其干旱胁迫下的表达特性分析[J]. 南方农业学报, 2017, 48(9): 1537-1547. doi: 10.3969/j.issn.2095-1191.2017.09.01 [23] BELANGER L F, ROY S, TREMBLEY M, et al. Mek2 is dispensable for mouse growth and development[J]. Mol Cell Biol, 2003, 23(14): 4778-4787. doi: 10.1128/MCB.23.14.4778-4787.2003 [24] SIMMON D G, CROSS J C. Determinants of trophoblast lineage and cell subtype specification in the mouse placenta[J]. Dev Biol, 2005, 284(1): 12-24. doi: 10.1016/j.ydbio.2005.05.010 [25] OHTA K, LIN Y L, HOGG N, et al. Direct effects of retinoic acid on entry of fetal male germ cells into meiosis in mice[J]. Biol Reprod, 2010, 83(6): 1056-1063. doi: 10.1095/biolreprod.110.085787 [26] 王静. 日本三角涡虫Atg1家族基因的功能研究[D]. 新乡: 河南师范大学, 2019: 1-88. [27] 葛楚天, 孙伟, 桑亚鹏, 等. 中华鳖Dmrt1基因的克隆、表达及在性逆转中的变化分析[J]. 中国科学:生命科学, 2014, 44(11): 1173-1182. [28] 刘斐斐, 崔晓羽, 董赛赛, 等. 三角帆蚌中WNT4基因克隆及表达分析[J]. 上海海洋大学学报, 2020, 29(6): 801-810. [29] 董赛赛, 崔晓羽, 段胜华, 等. 三角帆蚌KLHL10基因的特征和表达分析[J]. 上海海洋大学学报, 2021, 30(3): 389-398. doi: 10.12024/jsou.20200402983 [30] WANG Y, WANG X J, WANG Y W, et al. Effect of cadmium on cellular ultrastructure in mouse ovary[J]. Ultrast Pathol, 2015, 39(5): 324-328. doi: 10.3109/01913123.2015.1027436 [31] ZHOU Y, QIN Y, QIN Y, et al. Correction: Wdr62 is involved in female meiotic initiation via activating JNK signaling and associated with POI in humans[J]. PLOS Genet, 2019, 15(11): e1008504. doi: 10.1371/journal.pgen.1008504 -
