Analysis of solid-state anaerobic fermentation process of mackerel processing by-products by high-throughput sequencing
-
摘要: 为了实现易产组胺的鲭鱼 (Pneumatophorus japonicus) 加工副产物综合利用产业化技术开发，对鲭鱼加工副产物进行了不灭菌的乳杆菌固态厌氧发酵，尝试生产饲料用新型活性蛋白源。系统监测了发酵过程中组胺、酸溶蛋白、挥发性盐基氮 (Total volatile basic nitrogen, TVB-N)、pH的变化，通过高通量测序技术分析了发酵过程微生物群落的变化，对比分析了发酵前后抗原蛋白、游离氨基酸、脂肪酸成分的变化，以全面评价发酵过程中营养、活性成分和安全性的变迁。结果显示，植物乳杆菌 (Lactobacillus plantarum) HSCC-LP121在提高酸溶蛋白含量、降低组胺积累、减少挥发性盐基氮产生方面综合效果最好。发酵30 d时组胺降低到0.629 g·kg−1。这一数据和高通量测序结果表明，HSCC-LP121具有组胺降解能力，同时可抑制嗜冷杆菌属 (Psychrobacter) 和假单胞菌属 (Pseudomonas) 等潜在产组胺微生物的生长。该菌种还可抑制曲霉菌属 (Aspergillus) 等潜在危害真菌的生长，同时诱使一些生香酵母的生长。Abstract: In order to develop commercial technology for the comprehensive utilization of mackerel (Pneumatophorus japonicus) processing by-product, we carried out the non sterilized solid-state anaerobic fermentation of mackerel by-products to produce a novel protein source for feed with bioactivity. In addition, we monitored the content of histamine, acid-soluble protein and other indexes such as pH, total volatile basic nitrogen and antigenic protein; and investigated the evolution of microbial community during the fermentation by high-throughput sequencing technology, comparing the free amino acids and fatty acids before and after the fermentation. The results show that Lactobacillus plantarum HSCC-LP121 had the best comprehensive effect in increasing acid soluble protein content, reducing histamine accumulation and reducing volatile base nitrogen production. After 30 d of fermentation, the histamine content decreased to 0.629 g·kg−1, which indicates that HSCC-LP121 had the ability to degrade histamine. Moreover, HSCC-LP121 inhibited the growth of potential histamine-producing microorganisms such as Psychrobacter and Pseudomonas. Besides, the strain could also inhibit the growth of potentially harmful fungi such as Aspergillus, and induce the growth of some aroma-producing yeasts.
-

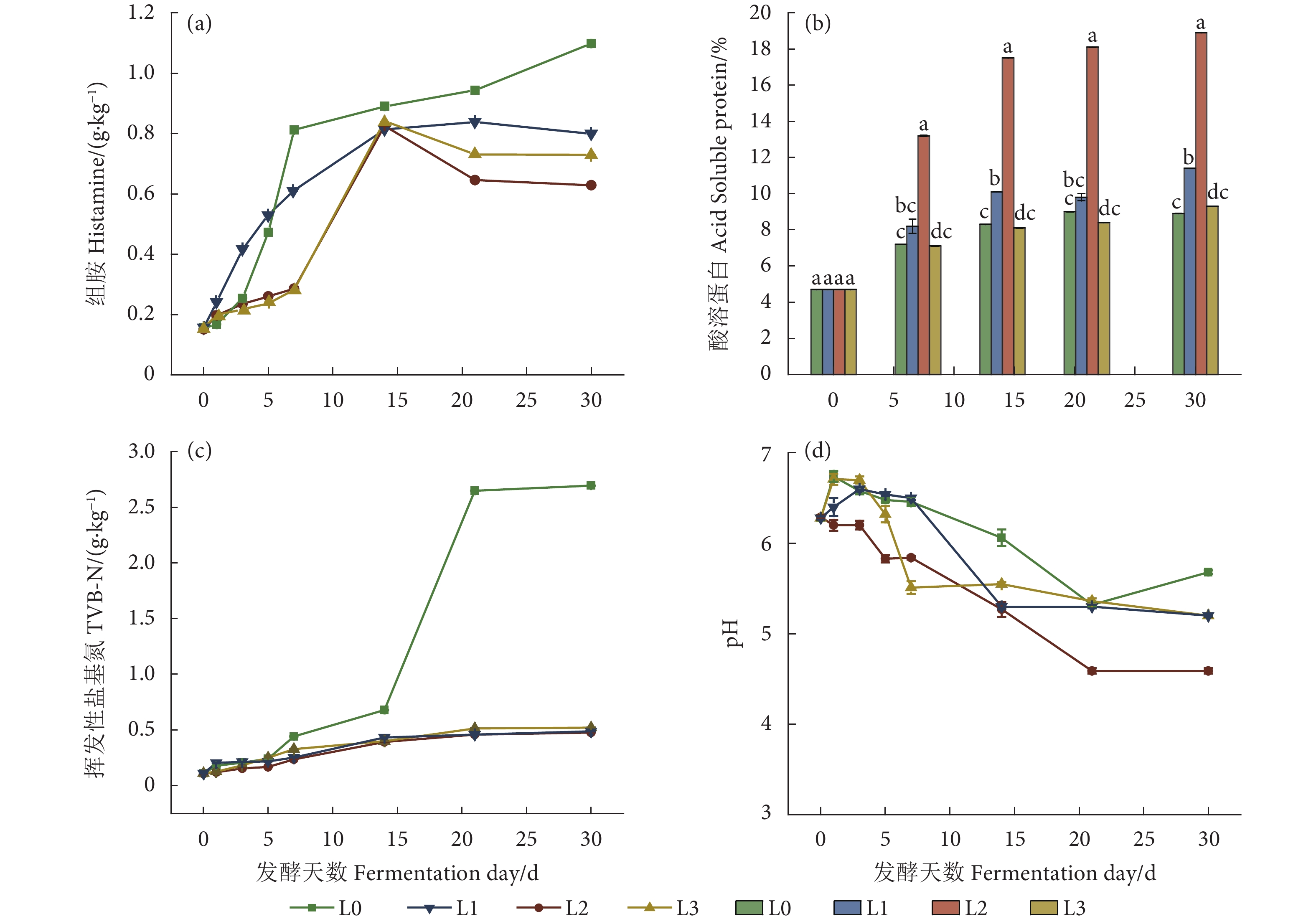

图 1 不同乳杆菌菌株发酵对鲭鱼加工副产物理化指标的影响
注：L0、L1、L2和L3分别为无任何处理的对照组、接种嗜酸乳杆菌、接种植物乳杆菌和接种贝氏乳杆菌的实验组；不同字母之间表示存在显著性差异 (P<0.05)，图 2 同此。
Figure 1. Effects of different lactic acid bacteria fermentation on physicochemical indexe of processed by-products of mackerel
Note: L0, L1, L2 and L3 are the control group without any treatment, groups inoculated with L. acidophilus, L. plantarum and L. beijerinck, respectively. Different letters indicate significant difference (P<0.05). The same case in Fig. 2.

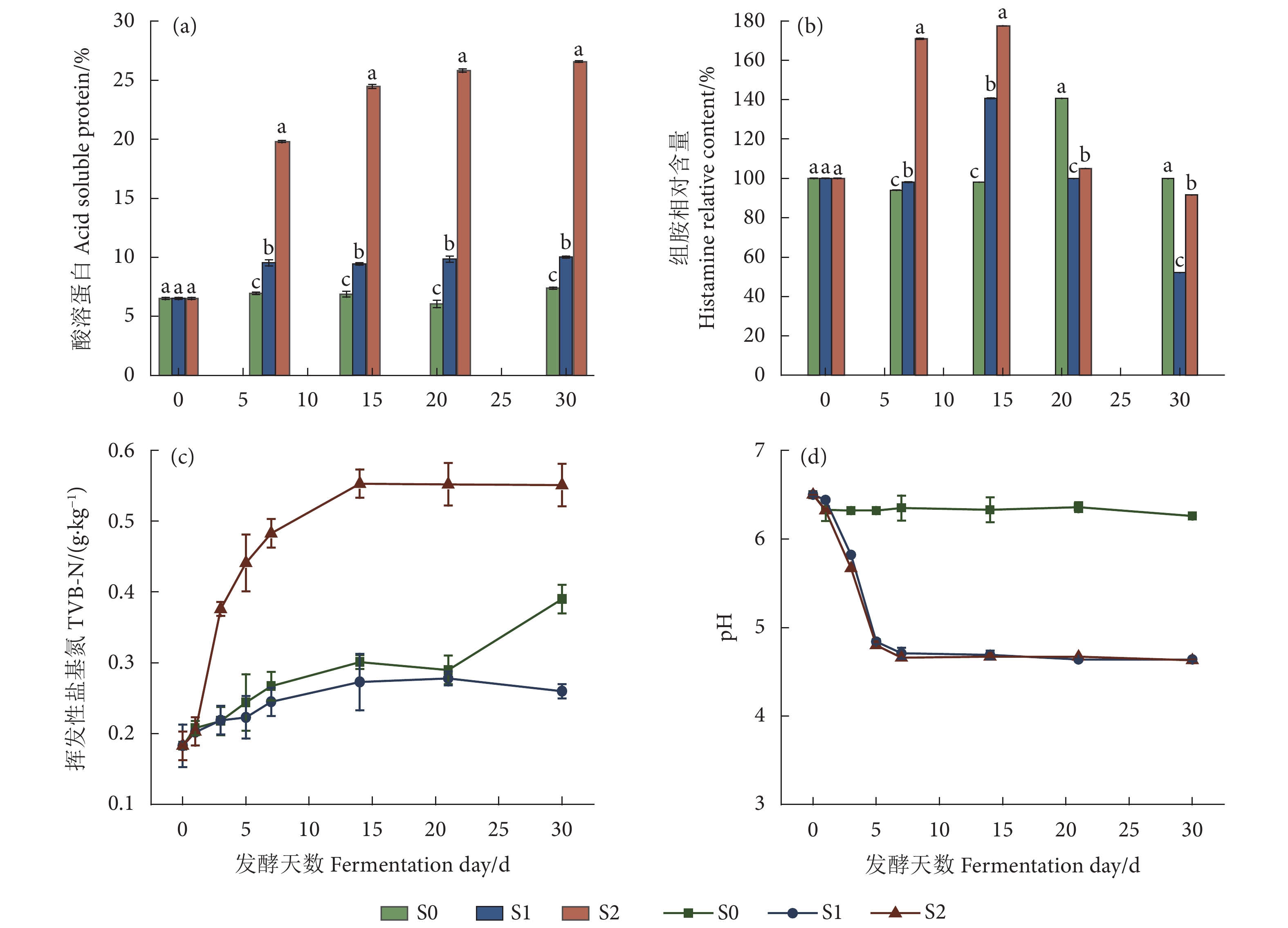

图 2 灭菌与不灭菌发酵对鲭鱼加工副产物理化指标的影响
注：S0、S1、S2 分别为灭菌不接种乳杆菌、灭菌接种乳杆菌、不灭菌接种乳杆菌；组胺相对含量由每一组组胺实际含量除以第 0 天未发酵的组胺实际含量计算得出。
Figure 2. Effects of sterilization and non-sterilization fermentation on physicochemical indexes of processed by-products of mackerel
Note: S0, S1 and S2 represent sterilization without inoculation of lactic acid bacteria, and non-sterilization with inoculation of lactic acid bacteria, respectively. The relative histamine content is calculated by the actual histamine content of each group by the actual histamine content of the sterilization group on 0th day.

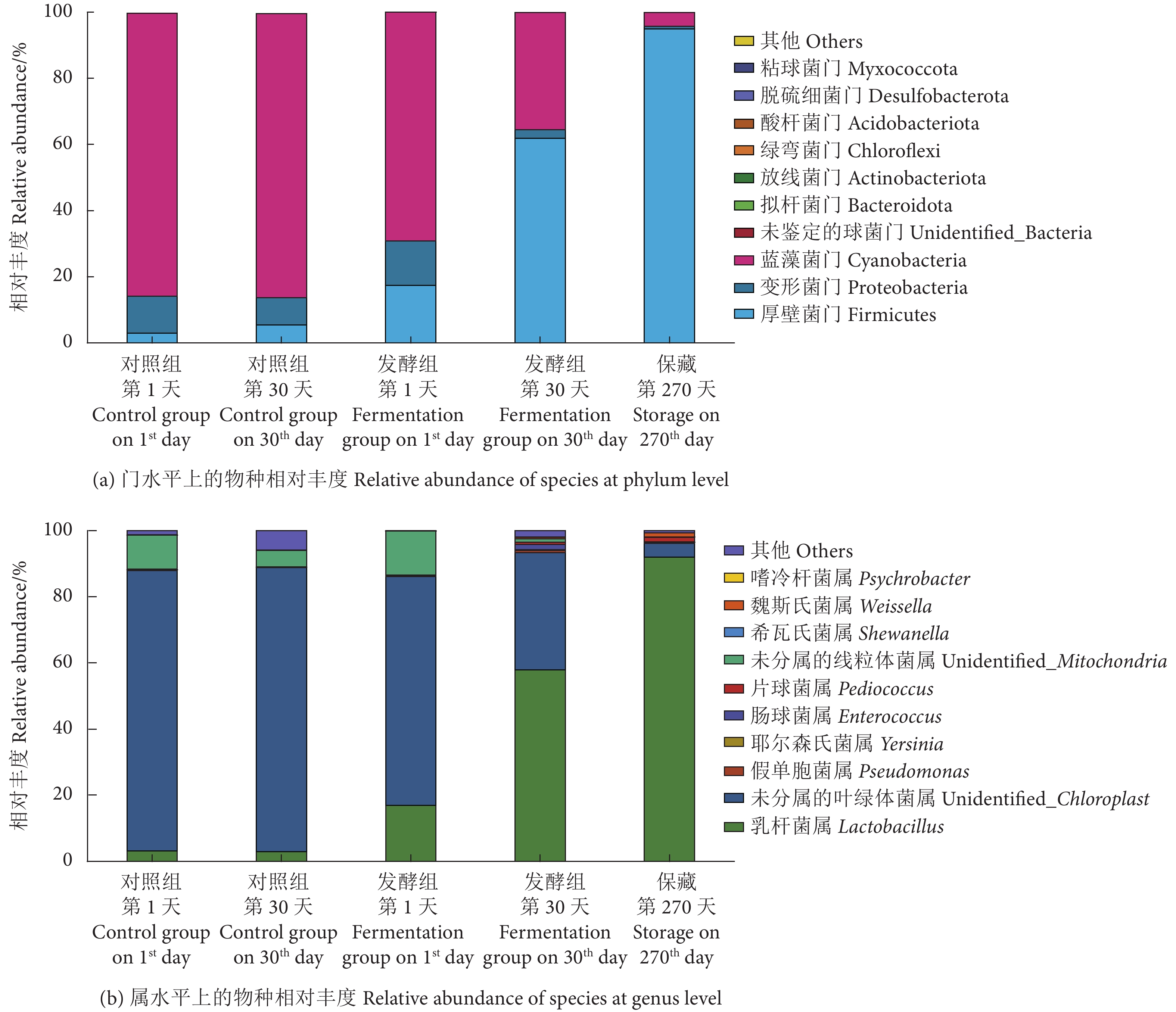

图 3 不同发酵阶段的细菌群落相对丰度
注：保藏 270 d 指发酵后保存在常温下 270 d；图 4 同此。
Figure 3. Relative abundance of bacterial communities at different fermentation stages
Note: Storage of 270 d means storing at room temperature for 270 d after fermentation; the same case in Fig. 4.

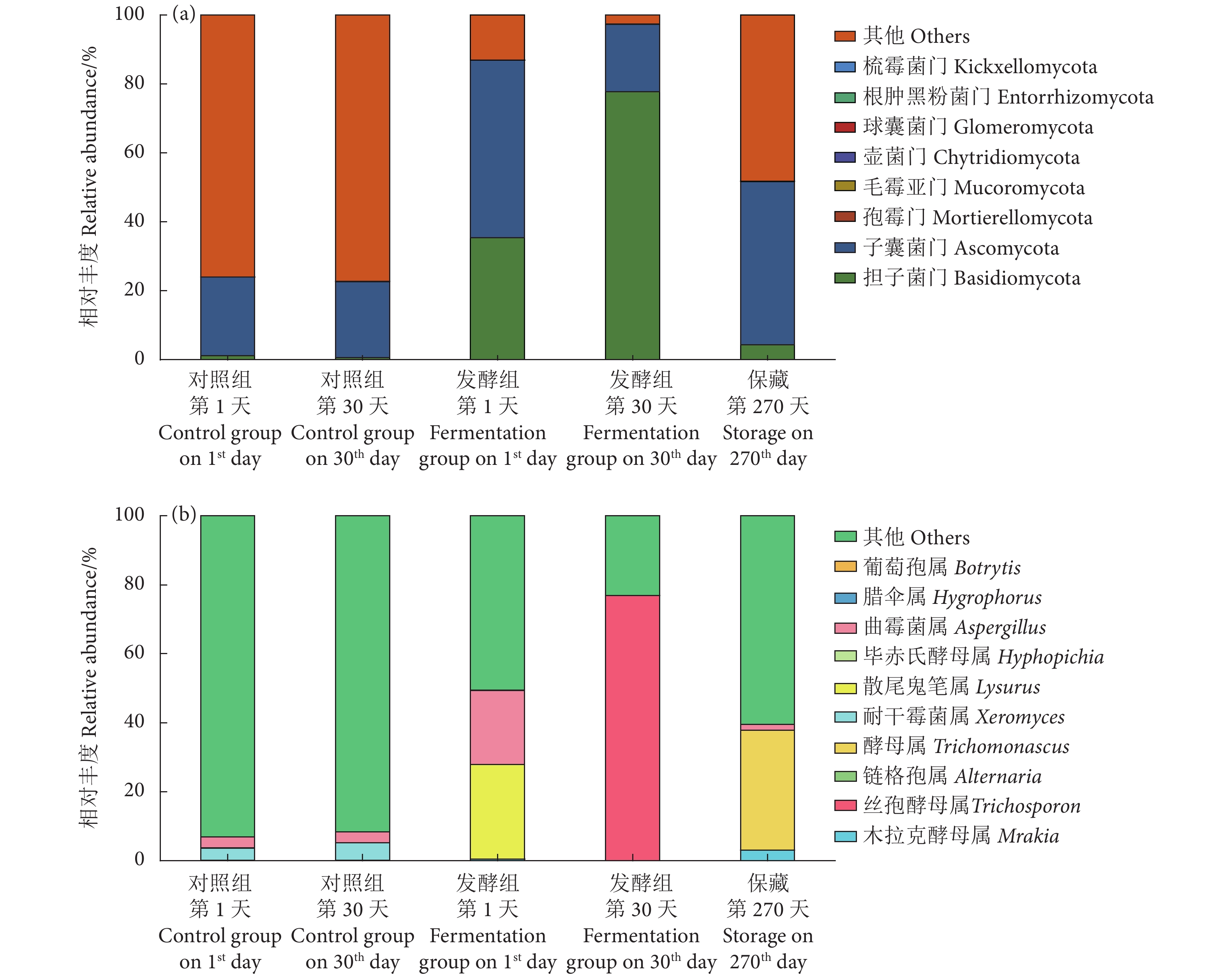

图 4 不同发酵阶段真菌群落的相对丰度
Figure 4. Relative abundance of fungal communities at different fermentation stages
图 5 乳杆菌发酵降解抗原蛋白的SDS-PAGE蛋白电泳图谱
Figure 5. SDS-PAGE electrophoretic pattern of lactobacilli protein degraded by fermentation
表 1 植物乳杆菌发酵鲭鱼加工副产物的Alpha多样性指数
Table 1. Alpha diversity index of processed by-products of mackerel fermented by L. plantarum
样品
SampleACE 指数
ACE indexChao1指数
Chao1 index香农指数
Shannon index覆盖率
Goods coverage对照组
Control group第1天 1st day 123.735 123.438 0.905 1 第30天 30th day 151.349 149.636 1.072 1 发酵组
Fermentation group第1天 1st day 128.206 121.5 1.371 1 第30天 30th day 114.553 110.286 1.668 1 第270天 270th day 57.176 56.0 0.634 1
下载: 导出CSV
表 2 乳杆菌发酵鲭鱼加工副产物游离氨基酸组成的变化
Table 2. Changes of free amino acid composition of processed by-products of mackerel fermented by lactic acid bacteria
mg·g−1 氨基酸名称
Amino acid name发酵前
Before fermentation对照组第30天
Control group on 30th day乳杆菌发酵第30天
Lactic acid bacteria fermentation on 30th day天冬氨酸 Asparagine 3.742 4.674 4.701 苏氨酸 Threonine 1.420 1.565 1.493 丝氨酸 Serine 1.828 2.079 2.152 谷氨酸 Glutamic acid 7.111 8.030 7.897 甘氨酸 Glycine 2.874 2.863 3.034 丙氨酸 Alanine 2.315 2.411 2.567 胱氨酸 Cystine 0.357 0.313 0.410 缬氨酸 Valine 1.814 1.702 1.953 蛋氨酸 Methionine 0.186 0.118 0.184 异亮氨酸 Isoleucine 1.529 1.489 1.881 亮氨酸 Leucine 2.799 3.049 2.358 酪氨酸 Tyrosine 0.971 1.131 1.246 苯丙氨酸 Phenylalanine 1.896 2.036 1.893 赖氨酸 Lysine 1.107 1.197 1.081 组氨酸 Hlstidine 2.182 1.881 2.266 精氨酸 Argnine 2.940 2.898 2.938 脯氨酸 Proline 2.082 2.407 3.275 总和 Total 37.153 40.175 41.331
下载: 导出CSV
表 3 乳杆菌发酵前后脂肪酸组成变化
Table 3. Changes of fatty acid composition before and after lactic acid bacteria fermentation
% 脂肪酸种类
Fatty acid type发酵前占比
Proportion before fermentation乳杆菌发酵第30天占比
Proportion of lactic acid bacteria fermentation on 30th day十三烷酸 C13:0 9.34 7.51 棕榈酸 C16:0 24.13 25.13 棕榈油酸 C16:1 7.32 7.13 油酸 C18:1 2.79 3.02 亚油酸 C18:2 12.95 15.11 亚麻酸 C18:3 2.81 2.96 γ-亚麻酸 C18:3 8.15 9.53 花生酸 C20:0 2.16 2.15 二十碳二烯酸 C20:2 3.74 3.27 二十碳五烯酸 C20:5 8.83 7.75 芥子酸 C22:1 0.56 0.55 二十二碳二烯酸 C22:2 4.28 3.89 木蜡酸 C24:0 9.11 8.33 二十二碳六烯酸 C22:6 3.84 3.67 单不饱和脂肪酸 MUFA 10.67 10.70 多不饱和脂肪酸 PUFA 44.60 46.18 饱和脂肪酸 SFA 44.74 43.12
下载: 导出CSV
-
[1] 佘文熙, 曾宇, 赵俐娜, 等. 酵母葡聚糖鲭鱼鱼丸的研制及其质构特性和防腐效果的研究[J]. 食品工业, 2015, 36(9): 133-135. [2] 农业农村部渔业渔政管理局, 全国水产技术推广总站, 中国水产学会. 中国渔业统计年鉴[R]. 北京: 中国农业出版社, 2020: 178. [3] ÁLVAREZ C, LÉLU P, LYNCH S A, et al. Optimised protein recovery from mackerel whole fish by using sequential acid/alkaline isoelectric solubilization precipitation (ISP) extraction assisted by ultrasound[J]. LWT, 2018, 88: 210-216. doi: 10.1016/j.lwt.2017.09.045 [4] 刘在军, 岑剑伟, 李来好, 等. 罗非鱼血液综合利用的研究思路及展望[J]. 南方水产科学, 2012, 8(2): 76-80. doi: 10.3969/j.issn.2095-0780.2012.02.012 [5] COLOMBO F M, CATTANEO P, CONFALONIERI E, et al. Histamine food poisonings: a systematic review and meta-analysis[J]. Crit Rev Food Sci Nutr, 2018, 58(7): 1131-1151. doi: 10.1080/10408398.2016.1242476 [6] ZHANG J B, JI C F, HAN J, et al. Inhibition of biogenic amines accumulation during Yucha fermentation by autochthonous Lactobacillus plantarum strains[J]. J Food Process Pres, 2021, 45(9): 15291. [7] LIM E. Inhibitory effect of bacteriocin-producing lactic acid bacteria against histamine-forming bacteria isolated from Myeolchijeot[J]. Fish Aquat Sci, 2016, 19(1): 42. doi: 10.1186/s41240-016-0040-x [8] 柳佳娜, 张宾, 刘宇, 等. 高效降解生物胺乳酸菌的筛选、鉴定及特性研究[J]. 中国酿造, 2021, 40(7): 141-147. doi: 10.11882/j.issn.0254-5071.2021.07.026 [9] 张栩. 不同乳酸菌发酵对酸菜的风味物质形成及品质指标的影响[J]. 中国酿造, 2021, 40(4): 133-137. doi: 10.11882/j.issn.0254-5071.2021.04.025 [10] WANG Q, YAMABE K, NARITA J, et al. Suppression of growth of putrefactive and food poisoning bacteria by lactic acid fermentation of kitchen waste[J]. Process Biochem, 2001, 37(4): 351-357. doi: 10.1016/S0032-9592(01)00217-5 [11] 沈颖莹, 吴燕燕, 李来好, 等. 发酵鳜鱼营养成分和安全性评价[J]. 南方水产科学, 2020, 16(3): 103-112. doi: 10.12131/2090247 [12] 肖志明, 李丽蓓, 邓涛, 等. 饲料原料中酸溶蛋白的测定方法研究[J]. 中国畜牧杂志, 2016, 52(2): 72-75,80. doi: 10.3969/j.issn.0258-7033.2016.02.015 [13] 李旺军, 方华, 季春源. 豆粕发酵蛋白中抗原蛋白和不良寡糖的检测[J]. 粮食与饲料工业, 2013(4): 61-65. [14] 王建, 林秋萍. 气相色谱-质谱法测定鱼油脂肪酸[J]. 中国饲料, 2001(17): 19-20. doi: 10.3969/j.issn.1004-3314.2001.17.011 [15] 王兴春, 杨致荣, 王敏, 等. 高通量测序技术及其应用[J]. 中国生物工程杂志, 2012, 32(1): 109-114. [16] 高林, 王新伟, 申国明, 等. 不同连作年限植烟土壤细菌和真菌群落结构差异[J]. 中国农业科技导报, 2019, 21(8): 147-152. [17] 曹荣, 林瑞环, 赵玲, 等. 基于高通量测序技术分析凡纳滨对虾(Litopenaeus vannamei)冷藏过程菌群结构变化[J]. 食品安全质量检测学报, 2019, 10(8): 2127-2131. doi: 10.3969/j.issn.2095-0381.2019.08.007 [18] AMATO K R, YEOMAN C J, KENT A, et al. Habitat degradation impacts black howler monkey (Alouatta pigra) gastrointestinal microbiomes[J]. ISME J, 2013, 7(7): 1344-1353. doi: 10.1038/ismej.2013.16 [19] CAPORASO J G, KUCZYNSKI J, STOMBAUGH J, et al. QIIME allows analysis of high-throughput community sequencing data[J]. Nat Methods, 2010, 7(5): 335-336. doi: 10.1038/nmeth.f.303 [20] FENG L, LI Y, TUO Y, et al. The bacterial diversity of sun-dried spanish mackerel in Dalian and application of Lactobacillus plantarum X23 as a bio-preservative[J]. J Food Prot, 2021, 84(12):2133-2142. [21] DOMINGOSLOPES M F, PSTANTON C, ROSS R P, et al. Histamine and cholesterol lowering abilities of lactic acid bacteria isolated from artisanal Pico cheese[J]. J Appl Microbiol, 2020, 129(6): 1428-1440. doi: 10.1111/jam.14733 [22] 吕文竹, 王洋, 方玉美, 等. 不同发酵条件对构树饲料酸溶蛋白含量的影响[J]. 饲料研究, 2021, 44(11): 75-78. [23] 谢全喜, 侯楠楠, 王梅. 高产苯乳酸菌株的筛选及其在豆粕发酵中的应用[J]. 中国酿造, 2021, 40(7): 65-70. doi: 10.11882/j.issn.0254-5071.2021.07.013 [24] ZHOU Y Q, WU S M, PENG Y L. Effect of lactic acid bacteria on mackerel (Pneumatophorus japonicus) seasoning quality and flavor during fermentation[J]. Food Biosci, 2021, 41: 100971. doi: 10.1016/j.fbio.2021.100971 [25] JAYACHITRA J, SIVASAKTHIVELAN P, BABU E. Inhibitory effect of bacteriocin-producing lactic acid bacteria against histamine-producing bacteria isolated from fish[J]. Res J Biotechnol, 2021, 16(3): 55-61. [26] KOBAYASHI T S, WANG X G, SHIGE T N, et al. Distribution of histamine-producing lactic acid bacteria in canned salted anchovies and their histamine production behavior[J]. Ann Microbiol, 2016, 66(3): 1277-1284. doi: 10.1007/s13213-016-1213-7 [27] ZANG J H, XU Y S, XIA W S, et al. Dynamics and diversity of microbial community succession during fermentation of Suan yu, a Chinese traditional fermented fish, determined by high throughput sequencing[J]. Food Res Int, 2018, 111: 565-573. doi: 10.1016/j.foodres.2018.05.076 [28] 王苾, 马明博, 朱弘焱, 等. 大骨鸡不同产蛋水平粪便微生物群落特征[J]. 饲料研究, 2021, 44(5): 75-81. [29] 江艳华, 王联珠, 许东勤, 等. 基于高通量测序分析虾夷扇贝柱菌群结构及腐败优势菌[J]. 食品科学, 2018, 39(20): 140-145. doi: 10.7506/spkx1002-6630-201820021 [30] KUNG H F, LE Y H, CHANG S C, et al. Histamine contents and histamine-forming bacteria in sufu products in Taiwan[J]. Food Control, 2007, 18(5): 381-386. doi: 10.1016/j.foodcont.2006.02.012 [31] LIU B Y, HUAN H L, GU H R, et al. Dynamics of a microbial community during ensiling and upon aerobic exposure in lactic acid bacteria inoculation-treated and untreated barley silages[J]. Bioresour Technol, 2019, 273: 212-219. doi: 10.1016/j.biortech.2018.10.041 [32] 李倩, 赵颖, 朱晓嫚, 等. 天然产物抑制黄曲霉生长及其产毒的研究进展[J]. 河南工业大学学报(自然科学版), 2021, 42(1): 132-140. [33] 刘闪, 曹星星, 吴攀, 等. 酸性矿山废水影响下水库真菌群落特征与环境因子研究[J]. 环境科学与技术, 2021, 44(2): 1-8. [34] BAWIN T, SEYE F, BOUKRAA S, et al. Histopathological effects of Aspergillus clavatus on larvae of the southern house mosquito, Culex quinquefasciatus[J]. Fungal Biol, 2016: 489-499. [35] KIRK P M, PEGLER D N, SUTTON B C. Dictionary of the Fungi[M]. 10th ed. Trowbridge: Cromwell Press, 2008: 315-351. [36] 白小燕, 邱树毅, 雷安亮, 等. 酱香白酒酿造过程中产多元醇功能酵母的筛选[J]. 中国酿造, 2017, 36(5): 58-62. doi: 10.11882/j.issn.0254-5071.2017.05.012 [37] 肖辰, 陆震鸣, 张晓娟, 等. 泸型酒中层酒醅真菌群落的发酵演替规律[J]. 应用与环境生物学报, 2018, 24(5): 1081-1086. [38] LEE Y C, TSENG P H, HWANG C C, et al. Effect of vacuum packaging on histamine production in Japanese Spanish mackerel (Scomberomorus niphonius) stored at various temperatures[J]. J Food Protect, 2019, 82(11): 1931-1937. doi: 10.4315/0362-028X.JFP-19-143 [39] 顾赛麒, 唐锦晶, 周绪霞, 等. 腌腊鱼传统日晒干制过程中品质变化与香气形成[J]. 食品科学, 2019, 40(17): 36-44. doi: 10.7506/spkx1002-6630-20180716-201 [40] 王悦齐, 李来好, 蔡秋杏, 等. 分离自腌干鱼的抗氧化发酵菌株的筛选及鉴定[J]. 南方水产科学, 2016, 12(3): 74-83. doi: 10.3969/j.issn.2095-0780.2016.03.010 [41] 田建军, 张开屏, 景智波, 等. 瑞士乳杆菌与木糖葡萄球菌对发酵香肠蛋白质分解和游离脂肪酸释放的影响[J]. 中国食品学报, 2019, 19(3): 141-147. [42] 王章存, 袁路阳, 张露, 等. 生物酶解法去除大豆蛋白抗原性研究进展[J]. 食品工业科技, 2018, 39(15): 317-321. -
